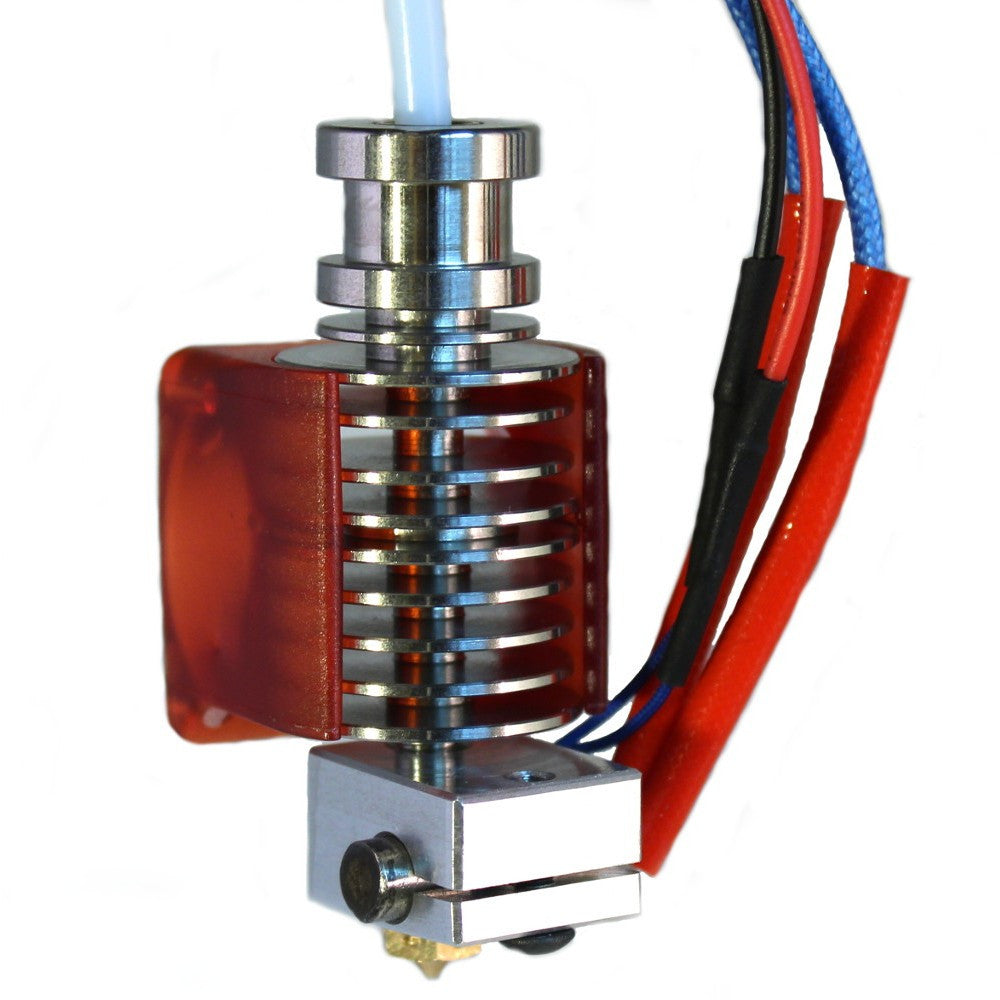

e3D Lite6 Full Kit 1.75mm Universal with Bowden add-on

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
C
Conrad T.
Basic Customer Service

The bracket that comes with the model may not fit the attachments on the X-axis, and you may need to print a piece to fit it.

I filled out the delivery instruction box for someone to call if I would need any extra brackets, it is my first printer so I didn't know exactly what to expect and they didn't call me. The thing is this would have been helpful to ensure I had the part made prior to the hot end arriving, my first printer and the other hot end sent to me was faulty. I ended up using a light piece of wood. Actually, while I'm at it, your phone doesn't work at all.

P
Peter E.
E3d V6 Lite

Perfect. Everything they say about how great they are is true.


genuine E3d online reseller

We are Australian Distributors of the infamous E3D-Online high performance full metal Hot Ends.

e3D 3D printer Hot Ends are well regarded as one of the best full metal Hot Ends. The e3D Lite6 is a low cost alternative to the e3D V6. It offer the high performance and reliable performance the e3D is famous for but is restricted in the print speeds and temperature that it can print as. It has a partial PTFE lined Hot End  so this means that there is a temperature limit of 240C. Lite6 is aimed at the more standard materials, such as ABS and PLA, and it really does produce beautiful looking prints with outstanding reliability.

Bsuitable for printing the widest range of print materials with excellent print results, allowing for soft flexible materials but restricted from higher temperature filaments such as polycarbonate and some

Lite6 does not supersede v6 - more compliments it, think of Lite6 as v6’s little brother. It’s a lower cost hotend, with a more modest specification, but still a great option for beginners and those on a budget. Read on to find out the key differences and features.

Lite6 does not supersede v6 - more compliments it, think of Lite6 as v6’s little brother. It’s a lower cost hotend, with a more modest specification, but still a great option for beginners and those on a budget. Read on to find out the key differences and features. - See more at: http://e3d-online.com/Lite6-1.75mm-Bowden#sthash.F0NYakOB.dpuf
Lite6 does not supersede v6 - more compliments it, think of Lite6 as v6’s little brother. It’s a lower cost hotend, with a more modest specification, but still a great option for beginners and those on a budget. Read on to find out the key differences and features. - See more at: http://e3d-online.com/Lite6-1.75mm-Bowden#sthash.F0NYakOB.dpuf
Lite6 does not supersede v6 - more compliments it, think of Lite6 as v6’s little brother. It’s a lower cost hotend, with a more modest specification, but still a great option for beginners and those on a budget. Read on to find out the key differences and features. - See more at: http://e3d-online.com/Lite6-1.75mm-Bowden#sthash.F0NYakOB.dpuf
e3D Lite6 hot end for sale australia
  ComparisonChart
  e3D V6 cross section view ed3 lite6 section
e3D V6

e3D Lite6

Max Temp >400 Degrees Celsius 245 Degrees Celsius
Speed 20-100mm/s 20-50mm/s
Compatibility
Filament Diameter 1.75mm of 3mm 1.75mm
Bowden Yes Yes
Volcano Yes Yes
V6 Nozzles Yes Yes

Cross section through 3eD Lite6. Note that the PTFE tube runs further down the hot end compared to the e3D V6 Hot Ends displayed below.

Cross sectional view through the three E3D V6 hot ends. Left 1.75mm Universal, middle 3mm Direct, right 3mm Bowden.

 What's in the box

Embedded Bowden Coupling (Universal for Direct & Bowden)
HeatSink
Heater Block
1.75 x 0.4mm Nozzle (interchangeable)
Heater Cartridge
Thermistor (Semitec 104GT2)
Section of PTFE
Fan
Fan Duct
All the fixings and wiring you need

Downloads

Download CAD drawings of the e3D Lite6 -here-

Download e3D Fan Duct CAD files -here-

Links

E3D-Lite6 Documentation -wiki-

This above cutaways show the internals of all three HotEnds. Left to Right: 1.75mm Universal, 3mm Direct, 3mm Bowden.  - See more at: https://e3d-online.com/E3D-v6/Full-Kit/v6-1.75mm-Universal-Bowden#sthash.cOCmL0t2.dpuf
This above cutaways show the internals of all three HotEnds. Left to Right: 1.75mm Universal, 3mm Direct, 3mm Bowden.  - See more at: https://e3d-online.com/E3D-v6/Full-Kit/v6-1.75mm-Universal-Bowden#sthash.cOCmL0t2.dpuf
