EinScan Pro+ 3D scanner by Shining 3D is no longer in production. It has been replaced with the 2X series found here-

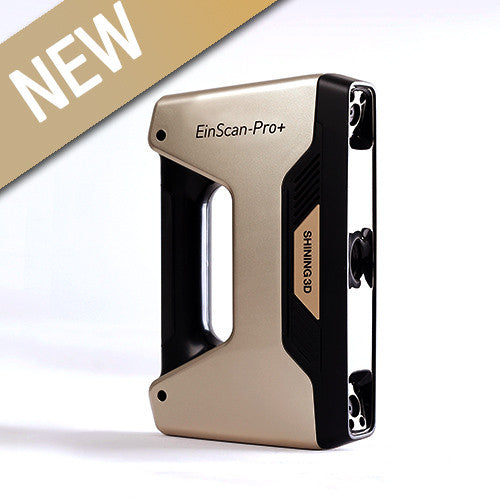

The EinScan-Pro+ is an upgrade to the well proven EinScan-Pro. It is a 3 in 1 3d scanner with multiple scanning modes and delivers simple and fast scanning with a convenient handheld design. The NEW EinScan-Pro+ has a higher light output, larger capture area and higher capture speed to its predecessor and includes the following innovations:

  1. Handheld high definition scanning mode (Handheld HD Scan) adopts a new international proprietary technology, achieving a perfect combination of 3D scanning speed and acquisition details.
  2. The range of single-frame scanning has been enlarged 1.6 times, to offer a comprehensive improvement in the scanning speed, in handheld scanning mode.
  3. An advanced brand new R² (Rapid Registration) optional scanning module is now added to the handheld rapid scanning mode (Handheld Rapid Scan).

Key Features include-

1. High Scan Speeds

EinScan-Pro+offers an enhanced handheld HDscanning mode by implementing and using an intensive line-scanning strategy.The original 7 data capture lines have been increased to 100 lines. The scanning speed under the handheld HD mode has been increased to 550,000 points/second.

2. Enlarged Scan Range

The EinScan-Pro+ re-calibrates the scanning range by using a new 300 x 170 mm (11.8 x 6.69 in) single-side scanning range. The area of single frame scanning is enlarged 1.6 times. The handheld scanning speed, for large-size objects, has been considerably increased. Scanning large-size objects using the EinScan-Pro+ is now more efficient.

3. Rapid Registration (R²) Optical Scanning

R² is a newly-added module in the handheld rapid scanning mode of the EinScan-Pro+. A new feature to recognize and align reference points has been added. Since it is targeted to be used with large-size objects, with few geometrical characteristics, even flat objects without any geometrical characteristics can easily be scanned. Color information of the surfaces of objects can also be obtained. It delivers a rapid and smooth operating experience while ensuring scanning accuracy.



System Requirements

  • Minimum Intel i5 – Recommended i7 quad core
  • 16GB RAM
  • Windows 7,8,10 – 64-bit only
  • Minimum Nvidia GTX 680M with 4GB
  • 2 x free USB 2.0 ports or higher
