E3D V-6 Nozzles Hardened Steel

Size

Customer Reviews

Based on 1 review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
100%
(1)
T
Tony S.
Very unhelpful and rude

Do not do business with these people, there are far better companies out there that actually look after their customers, especially repeat customers. Buyer beware I guess.


These e3D Nozzles have are made from hardened steel, making them suitable for 3d printing in abrasive materials without wear. Carbon fiber, glass filled filament as well as other abrasive materials cause rapid and significant damage to standard brass nozzles. A standard nozzle can be worn out within printing as little as 250 grams carbon fiber material.

e3D Hardend Nozzles for 3d printing in carbon fibre

e3d hardend stell nozzles

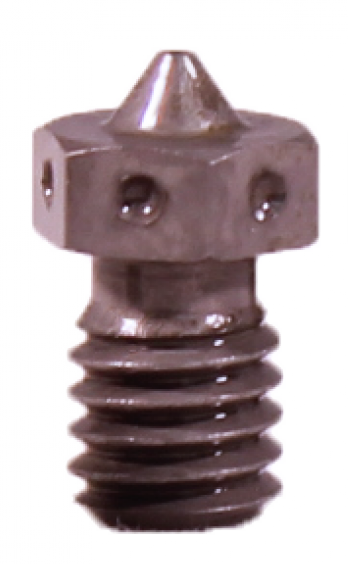

These nozzles ain't pretty but are a worthy investment. They are made from steel, not brass and are thermally and chemically treated which gives them a mottled appearance.

Wear from Carbon Fiber Filament to a Nozzle

This images shows the wear caused by 3d printing in Carbon fiber filament on a standard brass nozzle (on right) v's the Hardened Steel nozzle (on the left)


E3D nozzles come in a choice of sizes and are coded with dots on the thread. Note that E3D V-6 Nozzles are backwards compatible with e3D Hot Ends.

Nozzle Size 1.75mm 3.00mm Application ID Dots*
0.25mm High Precision - Slower Prints 0
0.30mm   1
0.35mm   2
0.40mm Balanced Nozzle - Supplied by Default 3
0.60mm   4
0.80mm Lower Precision - High Speed 5



The 1.75mm and 3mm Hot Ends use different nozzles so ensure you purchase the correct nozzles for your Hot End!

Cross sectional view through the three E3D V6 hot ends available. Left 1.75mm Universal, middle 3mm Direct, right 3mm Bowden.

genuine E3d online reseller

Buy with confidence as we are Official Australian Distributors of e3D-Online Products.

This above cutaways show the internals of all three HotEnds. Left to Right: 1.75mm Universal, 3mm Direct, 3mm Bowden.  - See more at: https://e3d-online.com/E3D-v6/Full-Kit/v6-1.75mm-Universal-Bowden#sthash.cOCmL0t2.dpuf
This above cutaways show the internals of all three HotEnds. Left to Right: 1.75mm Universal, 3mm Direct, 3mm Bowden.  - See more at: https://e3d-online.com/E3D-v6/Full-Kit/v6-1.75mm-Universal-Bowden#sthash.cOCmL0t2.dpuf
